This tough and reliable roller shutter door is ideal for ATP class certification vehicles. With outstanding temperature control, it is easily and quickly installed by one person.

It comes with a double-walled aluminium finish powder coat and an integrated continuous hinge for smooth and safe operation.





Technical Details

  • 60 mm profile with double-walled aluminium finish powder coat
  • Certified to EN12642 (XL rating)
  • Polyurethane (CFC free) foam insulation
  • Integrated continuous hinge
  • Anti-finger trap profile
  • Polyester powder coating to any standard RAL colour

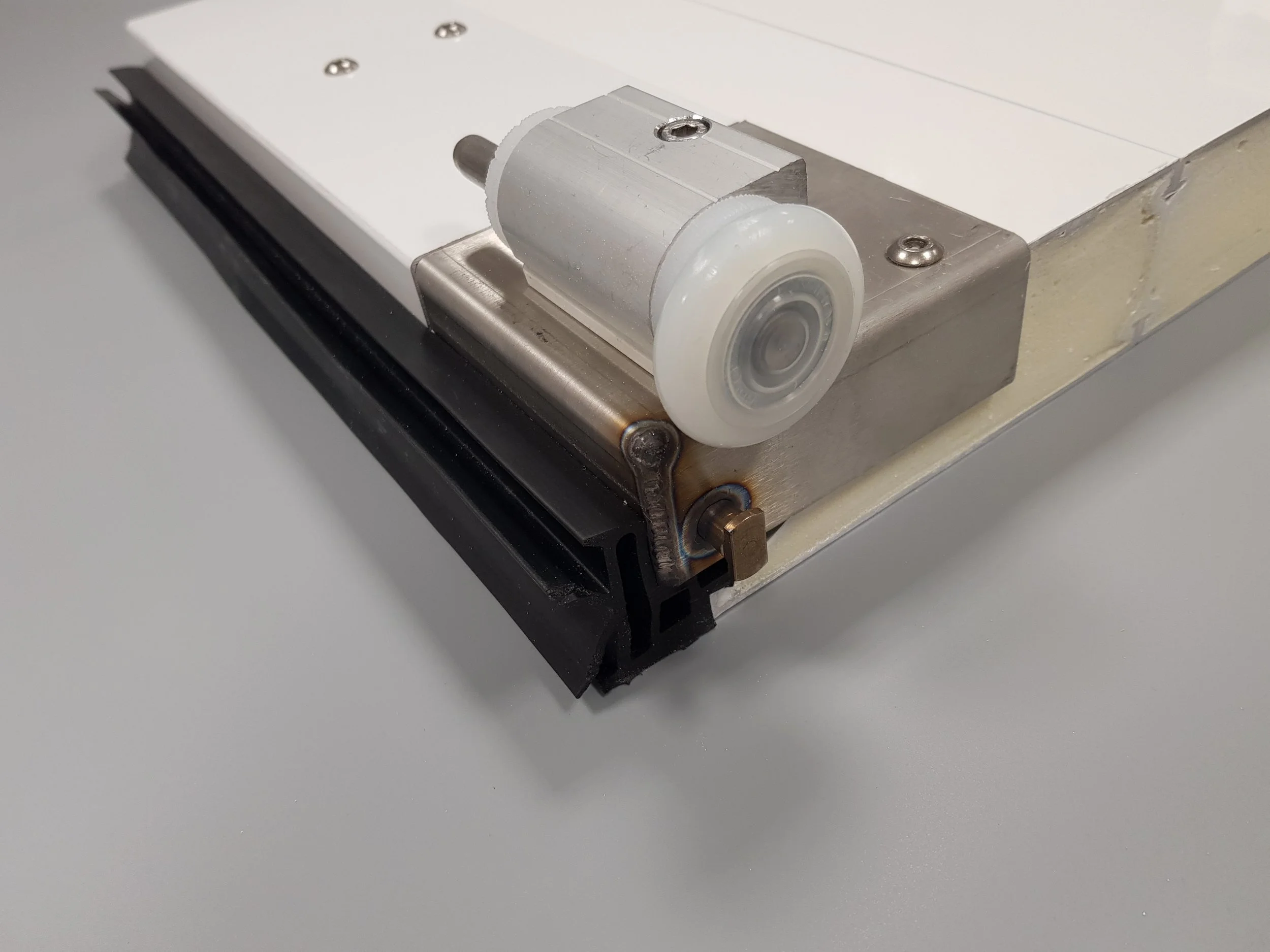

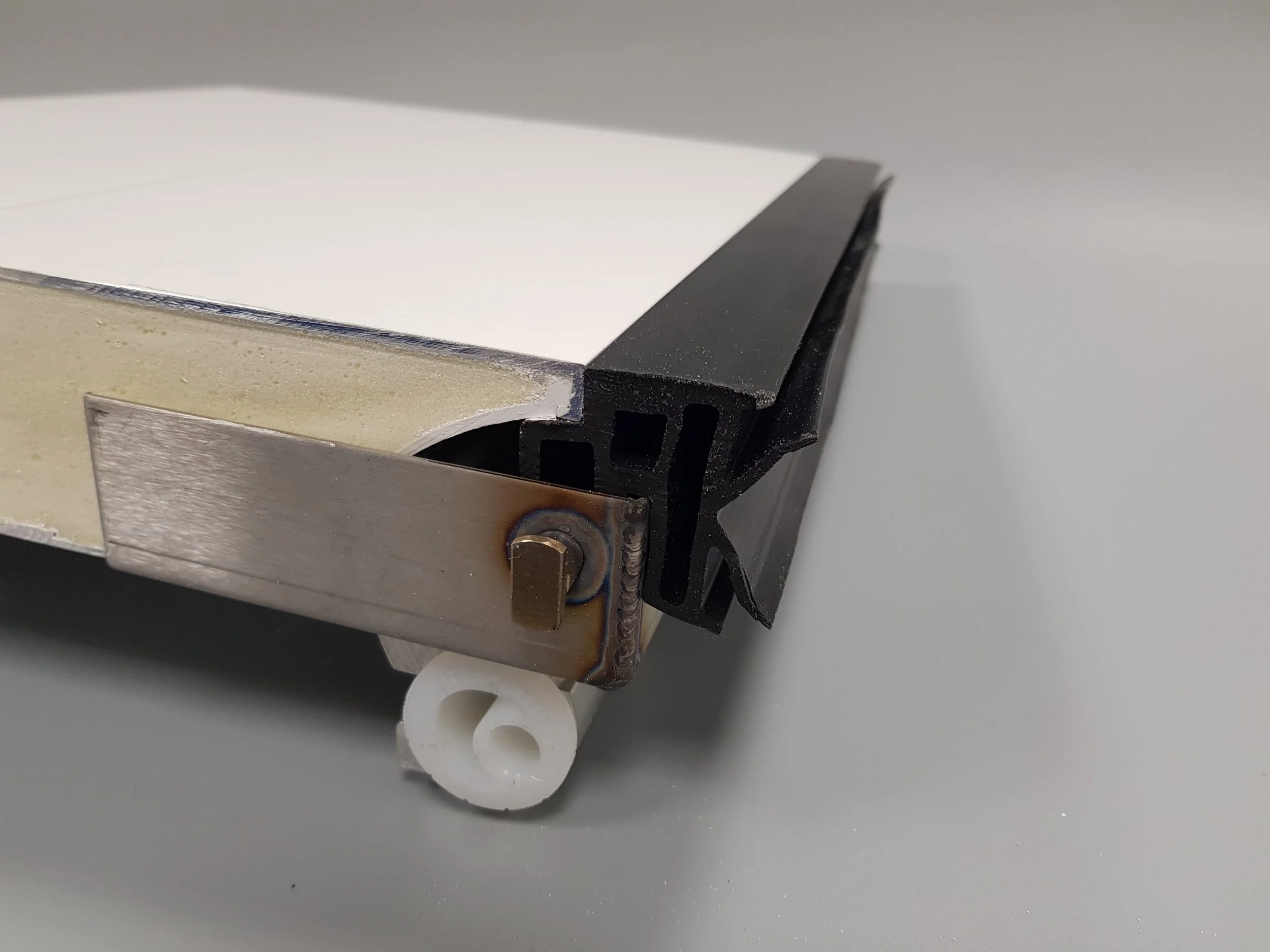

  • EDPM bottom sealing with dual point of contact
  • Zinc plated 2” track system

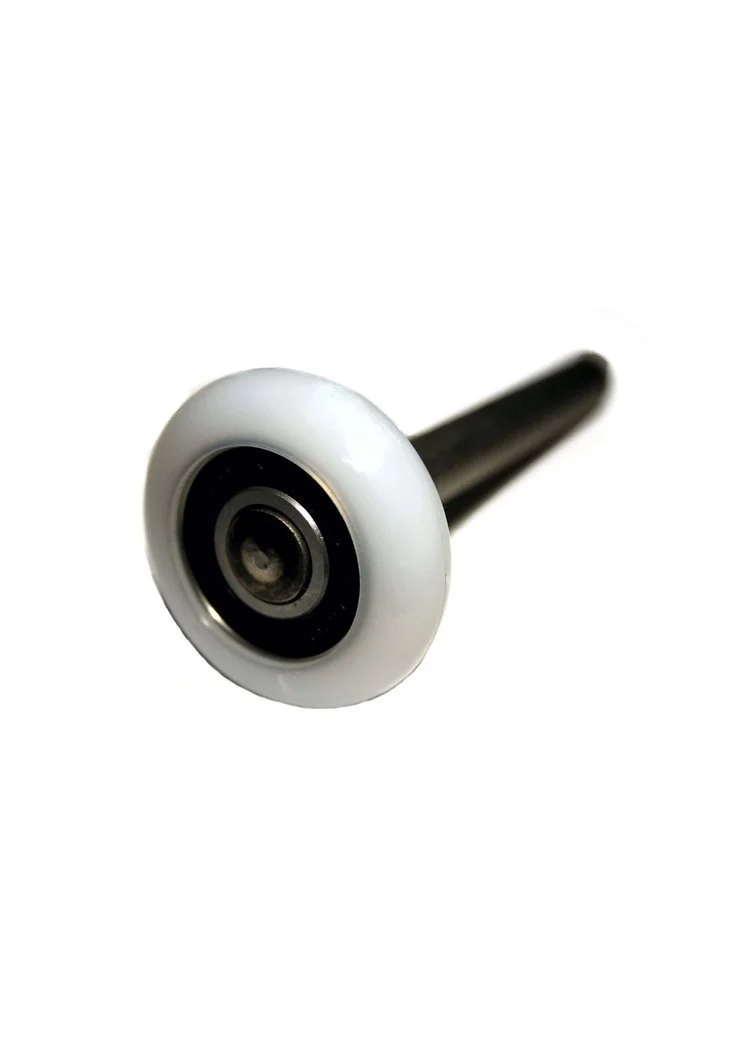

  • 2” nylon rollers with stainless steel shafts
  • Side seal with dual point of contact

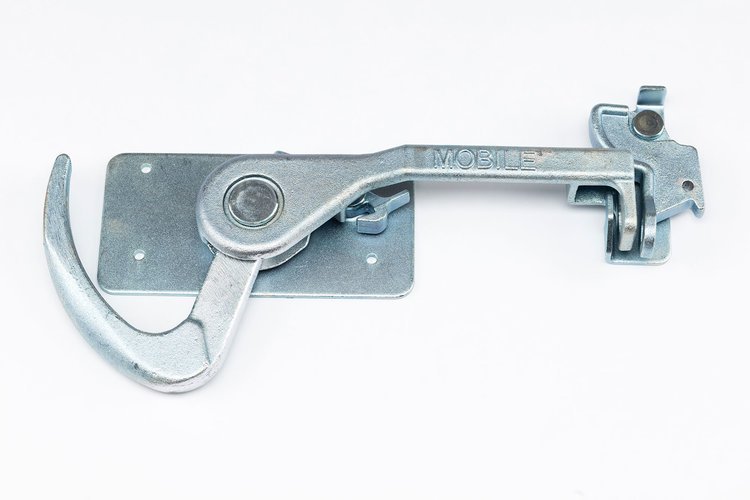

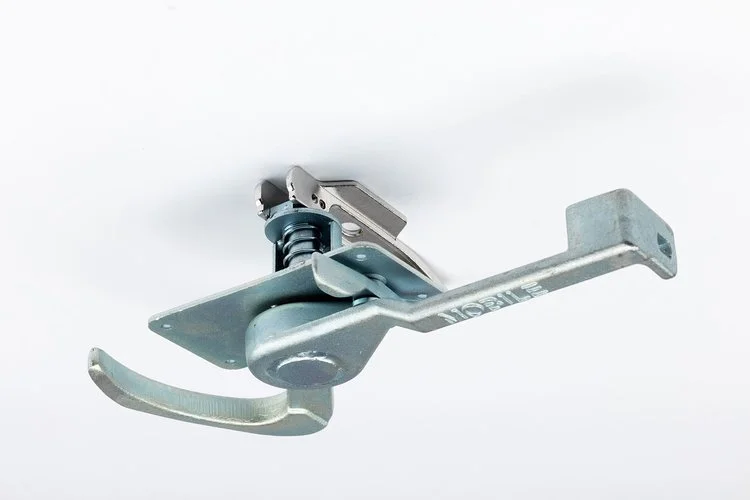

  • TIR hook lock with inside release
  • Manual operation with spring balancer

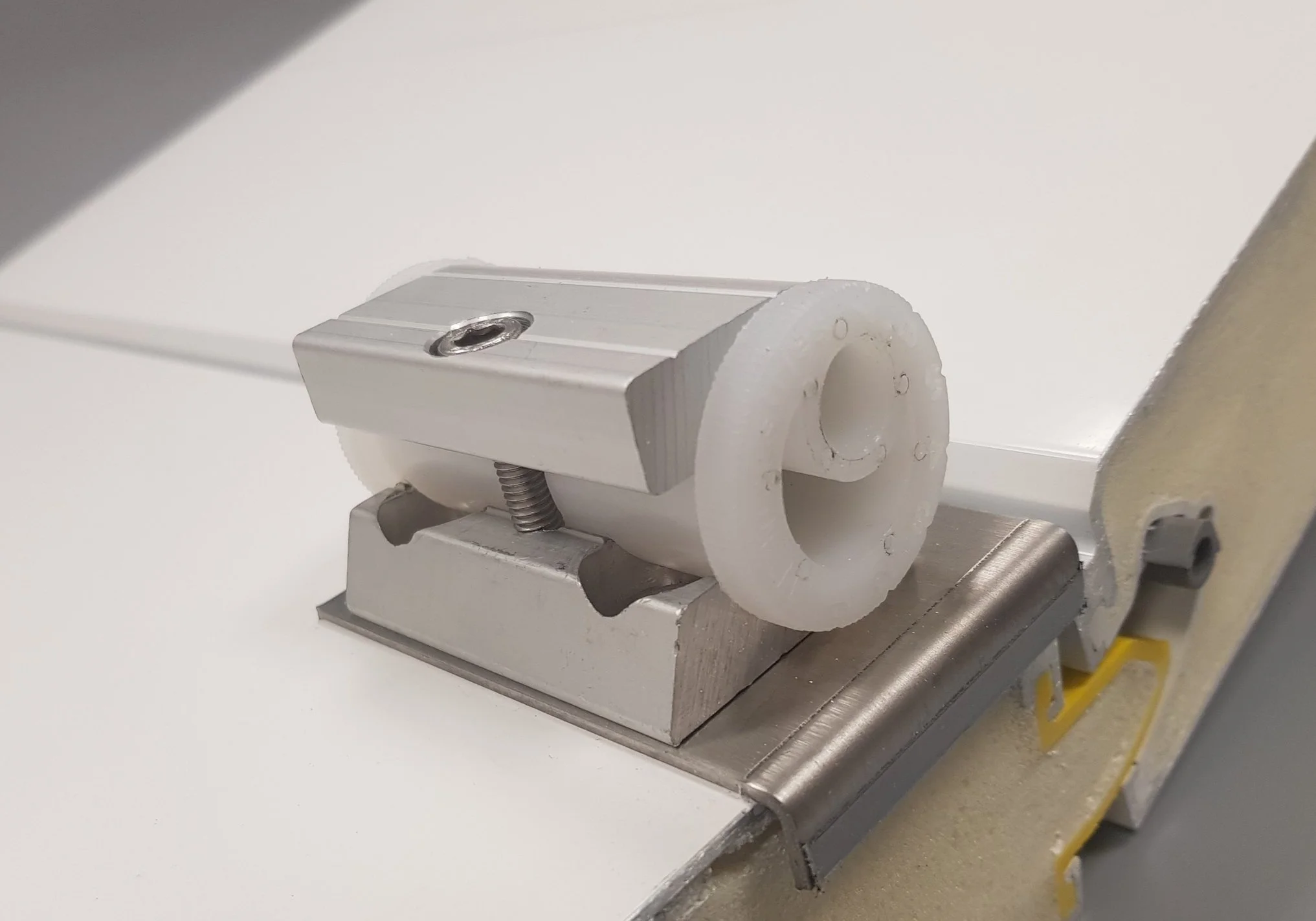

  • Eccentric roller holders to optimise sealing when closed


Optional Extras

  • Electric or pneumatic drive operation
  • Choice of locks to suit your security requirements


Features

  • Low maintenance construction
  • Inclined vertical tracks provide smooth operation and reduced wear and tear
  • Easy and quick one-person installation
  • Can be adapted to customer requirements






Products within this range:
